COLO-800D-A Automatic Powder Coating Gun Control Cabinet

group name: Automatic Powder Coating Machine

Min Order: 1 piece

brand name: COLO powder coating machine

model: COLO-800D-A

Nearest port for product export: NINGBO, SHANGHAI

Delivery clauses under the trade mode: FOB, CFR

Acceptable payment methods: T/T, L/C, MoneyGram

update time: Thu, 21 Nov 2024 16:53:10 GMT

contact supplier

Paramtents

Delivery Time 3-7 Working Days
Shipping By Sea
Application Metal Finishing Industry

Packging & Delivery

Min Order1 piece

Briefing

COLO-880D-A automatic powder coating gun installed on a central control cabinet, an ideal entry into automatic production line.

Detailed

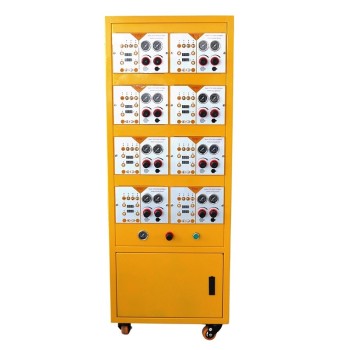

COLO-800D-A Automatic Powder Coating Gun Control Cabinet

COLO-800D automatic powder coating gun control cabinet's quantity of installed control unit can be tailored to meet the production demands, maximum up to 24 sets. A central cabinet simplifies the process of multiple powder guns working at the same time, increases operation efficiency significantly.

All powder gun controllers are integrated in a central control cabinet, which saves space and features more convenient to operate.

Product Details

COLO-800D Powder Gun Controller

* Voltage can be easily set by buttons from 0-100kv, the voltage and amperage values will be shown on the digital display for accurate reading.

* Just press the 3 one-touch intelligent buttons, application programs switches automatically between panel coating, corner coating and recoating, giving easy access to powder coating beginners.

Flat coating: ideal for flat shape workpieces.

Corner coating: ideal for complex shape parts with deep corners.

Recoating: ideal for repairing coating.

COLO-08 Automatic Spray Gun

* Lightweight, compact gun provides 100 kV and the highest transfer efficiency available for venturi-based coating systems.

* Air-purge cleanable design for fast, easy cleaning, without gun disassembly, a requirement for all quick color change applications.

* Superior Faraday-cage penetration and recoating capability to adapt a wide range of coating challenges, superior powder coating coverage.

* Comes with full array of nozzle assortment to optimize your spraying effect, including flat nozzle, round spray nozzles with different size deflectors, and extension nozzles.

Product Parameters

Model	COLO-800D-A
Power Range	220V/110V
Frequency	50HZ/60HZ
Gun Weight	500g
Temperature range in use	-10 ℃+50 ℃
Rated output voltage	24VDC
Input Voltage	200kv
Maximum output current	180Ua(max)
Maximum output voltage	0-100KV (adjustable)
Maximum powder injection	600g/min
Polarity	negative (-)

Product Picture
