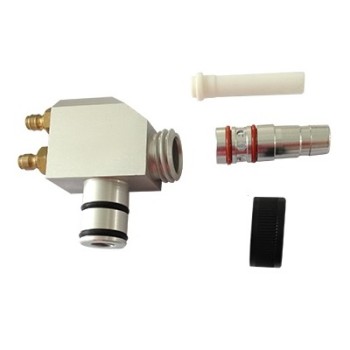

Modular corona powder pump 1095913

Corona Pump

See Figure 4.

Item Part Description Quantity Note

— 1095922 PUMP assembly, corona, Encore Gen II, pkg —

1 1095914  NUT, pump, Encore Gen II 1

2 1095898  HOLDER, pump throat, Encore Gen II 1

3 940147  O-RING, silicone, 0.50 x 0.625 x 0.063 in. 2

4 1095899  THROAT, pump, Encore Gen II, Tivar 1 A

5 1095913  BODY, pump, Encore Gun II 1

6 1095885  O-RING, −113, silicone, conductive, duro 70 2

7 241041  COUPLING, quick disconnect, socket end 2

8 241042  COUPLING, quick disconnect, nipple end 1

9 1096081  CONNECTOR, female, elbow, 8mm T x

1/8 in. RPT

10 1600595  NOZZLE, pump, air flow, Encore Gen II,stainless steel

11 940084  O-RING, 0.188 x 0.312 x 0.063 1

NS 1088590  O-RING, silicone, conductive, 0.627 x 0.080 in. 2 B
