Gas Powered Powder Coating Oven Industrial Curing Oven COLO-5219
- group name
- Gas Powder Coating Oven
- Min Order
- 1 piece
- brand name
- COLO powder coating machine
- model
- COLO-5219
- Nearest port for product export
- NINGBO, SHANGHAI
- Delivery clauses under the trade mode
- FOB, CFR
- Acceptable payment methods
- T/T, L/C, MoneyGram
- update time
- Thu, 21 Nov 2024 16:45:09 GMT
Paramtents
Delivery Time 7-15 Working Days
Shipping By Sea
Application Metal Finishing Industry
Power LPG/ GAS/ Diesel
Packging & Delivery
-
Min Order1 piece
Briefing
COLO-5219 powder coating oven is for larger metal products, such as aluminium profile, window frame, steel doors, fence, etc.
Detailed

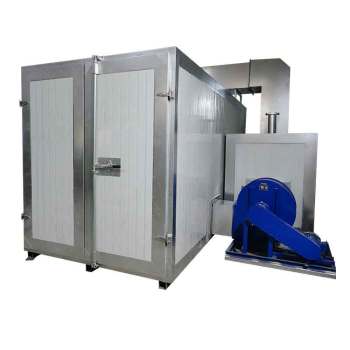

Gas Powered Powder Coating Oven Industrial Curing Oven COLO-5219
The powder coating oven is designed for curing longer or large workparts in batches, 5 meter length allows batch production metal frames, plates, furniture products, etc.
Using gas or diesel as heating source will save more energy expense. By using high efficiency heating system, It performs quick raising of temperature that ensures optimal curing effect.
Powder Coating Oven Conveyor System
The large powder coating oven can be designed with trolley system or track system for different purposes, which is based on your production demands.
1) Trolley system, configured with an internal one handing the workparts into the chamber for curing process, as well as an external one transport the internal trolley for easily loading and unloading. This system is ideal for small and light parts that takes full utilization of oven space.
2) Track system, suitable for transporting heavy or big workparts by using less manual efforts, the quantity of tracks can be customized as requests.
Product Details
PLC Controller
The electric controller panel controls all functions, it allows to easily set temperature & time as well as displays actual inside temperature to get a wonderful powder coating curing effect.
Circulation Fan
5.5kw powerful circulation fan circles the hot air to warm the powder coating oven interior, minimizes temperature difference and guarantee uniform-heated chamber. In order to make parts cure with a quality finish with even gloss and consistent color.
RIELLO Gas Burner
An imported Riello burner takes full utilization of fuels, saving energy at the same time giving much quicker raise to a required temperature. The combustion process is clean and pollution-free.
Powder Coating Oven Material
Interlayer is 100mm thickness rock wool board, maximize the effect of heat preservation.
Inner wall is 1mm heat-resisting galvanized steel.
Outer wall is anti-rust color steel, durable and long lifespan.
Product Parameters
|
Model
|
COLO-5219
|
|
Working Dimension (mm)
|
1900 width x 1900 height x 5000 depth
|
Overall Dimension (mm) | 2100 width x 2480 height x 5200 depth |
|
Power supply
|
Gas/Diesel/LPG
|
Voltage | 220V/380V(50-60Hz) |
Burner | Italy RIELLO, 200,000kcal |
Motor power | 5.5kw |
Warm-up Time | 15-30min (180°C) |
Temperature stability | < ± 3-5°C |
Temperature max. | 250°C |
Circulation/ Air flow | Vertical ,Variable through holes on the walls |
Ventilation performance | 8288-16576m3/h |
Transportation | Trolley |
